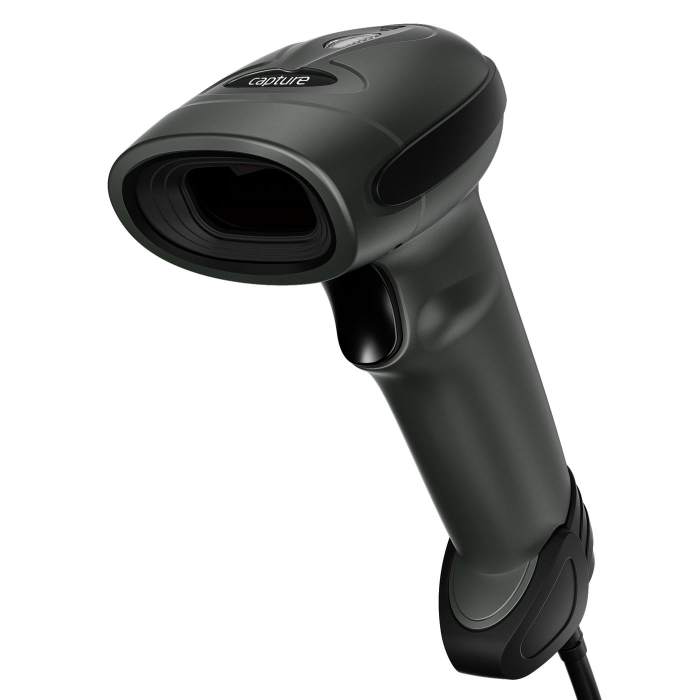

Capture Viper - Corded 1D/2D Barcode Scanner
MPNCA-SC-10200B
Item no.W128820038
EAN/UPC5715063320150
Secure Payments Accepted
The Capture Viper handheld scanner is built to deliver maximum value. The Viper not only brings exceptional reading performance, but can also output data in numerous languages to cover a vast range of scanning requirements. Supported by the latest imaging technology it rapidly scans barcodes from product labels, membership cards, and electronic coupons, whether 1D or 2D. Even faded or damaged barcodes.
Practical and user-friendly setup
Supports multilingual data output
Single-scan configuration with the iCode
LED-aimer helps users aim faster and with greater accuracy
Superior first-time read
Omni-directional scanning
Reads electronic barcodes from smartphone screens
Reads most challenging and problematic barcodes
Withstands drops from up to 1.8m onto concrete
| Show Video Button | No |
|---|---|
| SKU | W128820038 |
| Brand | Capture |
| Model | CA-SC-10200B |
| Warranty | 3 Year(s) |
| Built-in display | No |
| Product colour | Black, Grey |
| Operating relative humidity (H-H) | 5-95 % |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 5-95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Dimensions (WxDxH) | 9.7x6.5x15.5 mm |
| Light source | 660nm LED |
| Maximum operating distance | 100 m |
| Resolution | 640 x 480 pixels |
| External power adapter | Yes |
| LED indicators | Battery level, Power, Status |
| Programming function | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Sustainability certificates | CE, RoHS |
| Housing material | ABS |
| International Protection (IP) code | IP52 |
| Protection features | Bump resistant, Dust resistant, Splash proof |
| RoHS compliance | Yes |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Linear (1D) barcodes supported | Code 128, Code 32, Code 39, GS1 DataBar, IATA, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, Telepen, U.P.C. |
| Motion tolerance (cm/s) | 62.7 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Pitch reading angle | -55 - 55 ° |
| Scanner type | 2D |
| Sensor type | LED |
| Type | Handheld bar code reader |
| Safety | Withstands multiple drops from 1.8m (6ft) to concrete |
| Stock | 169 |
