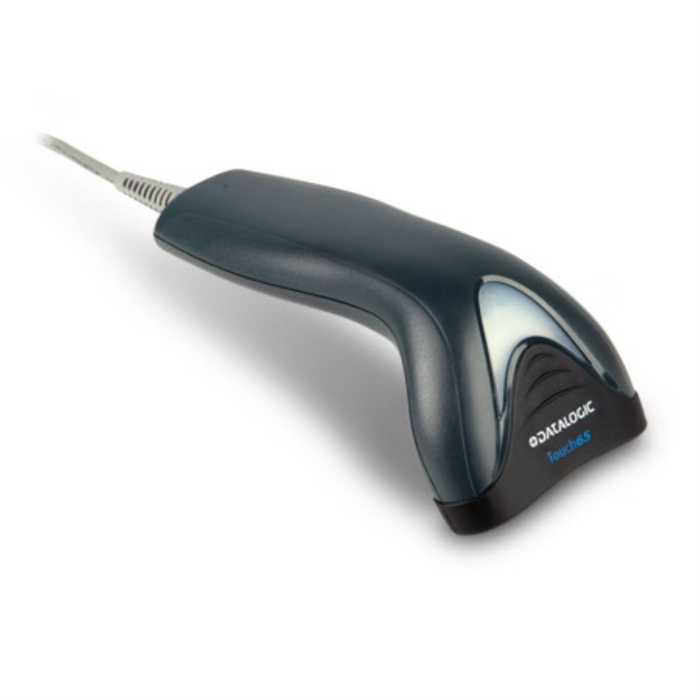

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.
| SKU | TD1120-BK-90K1 |
|---|---|
| Brand | Datalogic |
| Model | TD1120-BK-90K1 |
| Warranty | 5 Year(s) |
| Product colour | Black |
| Tilt angle range | -45 - 45 ° |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Dimensions (WxDxH) | 104 x 67 x 170 mm |
| Buzzer | Yes |
| Certification | RoHS |
| Bluetooth | No |
| Standard interfaces | USB |
| Input voltage | 5 V |
| Power consumption | 100 mA |
| International Protection (IP) code | IP30 |
| Pitch reading angle | -65 - 65 ° |
| Tilt reading angle | -45 - 45 ° |
| Wavelength | 640 nm |
| Yaw reading angle | -70 - 70 ° |
| Stock | 55 |
