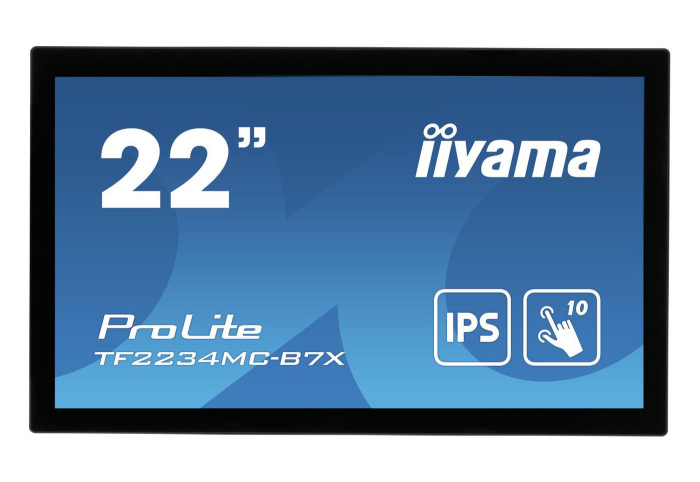

The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant, and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets (OMK1-1).
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
| SKU | W126004761 |
|---|---|
| Brand | iiyama |
| Model | TF2234MC-B7X |
| Warranty | 3 Year(s) |
| Built-in microphone | No |
| Built-in camera | No |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 305 cd/m² |
| Display brightness (typical) | 350 cd/m² |
| Display diagonal | 21.5 " |
| Display diagonal (metric) | 54.6 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 84 kHz |
| Number of OSD languages | 8 |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Response time | 8 ms |
| Pixel pitch | 0.247 x 0.247 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Surface hardness | 7H |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Packaging content | AC adapter |
| Placement supported | Horizontal/Vertical |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Viewable size, vertical | 26.77 cm |
| Viewing angle, vertical | 178 ° |
| Viewing angle, horizontal | 178 ° |
| Front bezel colour | Black |
| Glass thickness | 1.5 mm |
| Product colour | Black |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, English, French, German, Italian, Japanese, Russian, Spanish |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Brightness | 305 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Depth | 4.6 cm |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Height | 31.35 cm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Cables included | AC, DisplayPort, HDMI, USB |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Pallet net height | 109 cm |
| Pallet net length | 192.7 cm |
| Pallet net width | 109 cm |
| Products per pallet | 48 pc(s) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| PCAP Weight | 4400 g |
| PCAP Width | 51.75 cm |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Palm rejection | Yes |
| HDMI | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Energy efficiency scale | A to G |
| Energy efficiency class (old) | F |
| Energy efficiency class (SDR) | F |
| European Product Registry for Energy Labelling (EPREL) code | 388725 |
| Power consumption (off) | 0.3 W |
| Socket connector type | C13 |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 18 W |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Sustainability certificates | CE, ErP, REACH, RoHS |
| Wall mountable | Yes |
| International Protection (IP) code | IP65 |
| Height (with stand) | 31.35 cm |
| Height (without stand) | 31.35 cm |
| Depth (with stand) | 4.6 cm |
| Depth (without stand) | 4.6 cm |
| Weight (with stand) | 4400 g |
| Weight (without stand) | 4400 g |
| Width (with stand) | 51.75 cm |
| Width (without stand) | 51.75 cm |
| Stock | 9 |
