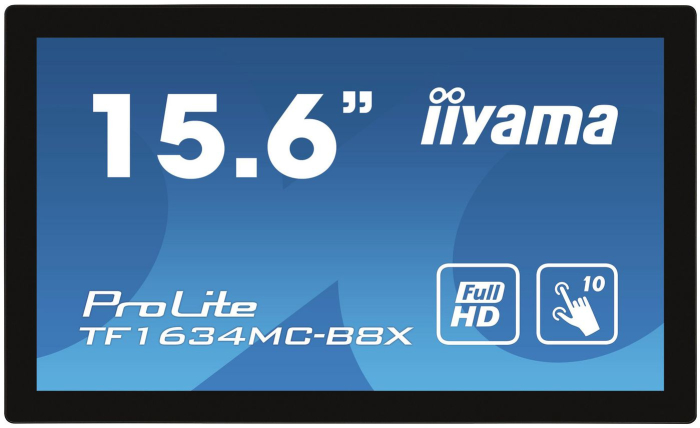

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
FULL HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
| SKU | W126088449 |
|---|---|
| Brand | iiyama |
| Model | TF1634MC-B8X |
| Warranty | 3 Year(s) |
| Built-in microphone | No |
| Built-in camera | No |
| Contrast ratio (typical) | 700:1 |
| Display brightness | 405 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Display diagonal | 15.6 " |
| Display diagonal (metric) | 39.5 cm |
| Display number of colours | 16.2 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 84 kHz |
| Maximum refresh rate | 60 Hz |
| Number of OSD languages | 7 |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Response time | 25 ms |
| Pixel pitch | 0.179 x 0.179 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Surface hardness | 7H |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Packaging content | AC adapter |
| Placement supported | Horizontal/Vertical |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Viewable size, horizontal | 34.42 cm |
| Viewable size, vertical | 19.36 cm |
| Viewing angle, vertical | 178 ° |
| Viewing angle, horizontal | 178 ° |
| Front bezel colour | Black |
| Glass thickness | 2.4 mm |
| Product colour | Black |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Spanish, Traditional Chinese |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Brightness | 405 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Depth | 4.6 cm |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| Height | 23.05 cm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Cables included | AC, DisplayPort, HDMI, USB |
| Active display area (W x H) | 344.2 x 193.6 mm |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Pallet net height | 9.7 cm |
| Pallet net length | 20.4 cm |
| Pallet net width | 11.5 cm |
| Products per pallet | 78 pc(s) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| PCAP Weight | 2000 g |
| PCAP Width | 38.1 cm |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Palm rejection | Yes |
| HDMI | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 12.4 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | F |
| European Product Registry for Energy Labelling (EPREL) code | 391713 |
| Power consumption (off) | 0.3 W |
| Socket connector type | C13 |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 18 W |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Sustainability certificates | ErP |
| Wall mountable | Yes |
| International Protection (IP) code | IP65 |
| Height (with stand) | 23.05 cm |
| Height (without stand) | 4.6 cm |
| Depth (with stand) | 4.6 cm |
| Depth (without stand) | 4.6 cm |
| Weight (with stand) | 2000 g |
| Weight (without stand) | 2000 g |
| Width (with stand) | 38.1 cm |
| Width (without stand) | 38.1 cm |
| Stock | 4 |
