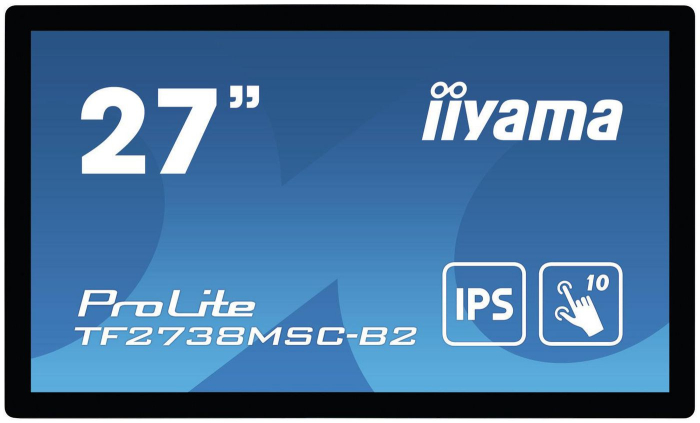

27” 10pt open frame touch monitor with edge-to-edge glass
With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
| SKU | W126091168 |
|---|---|
| Brand | iiyama |
| Model | TF2738MSC-B2 |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Contrast ratio (dynamic) | 12000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 425 cd/m² |
| Display brightness (typical) | 500 cd/m² |
| Display diagonal | 27 " |
| Display diagonal (metric) | 68.6 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 80 kHz |
| Number of OSD languages | 8 |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Response time | 5 ms |
| Pixel pitch | 0.311 x 0.311 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Surface hardness | 6H |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Placement supported | Horizontal/Vertical |
| Touch method | stylus, finger, glove |
| Viewable size, horizontal | 59.76 cm |
| Viewable size, vertical | 33.62 cm |
| Viewing angle, vertical | 178 ° |
| Viewing angle, horizontal | 178 ° |
| Front bezel colour | Black |
| Glass thickness | 3.6 mm |
| Product colour | Black |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Dutch, English, French, German, Japanese, Polish, Russian |
| Panel mounting interface | 100 x 100, 200 x 100 |
| VESA mounting | Yes |
| Operating hours (hours/days) | 16/7 |
| Brightness | 425 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Depth | 5.2 cm |
| Display viewable area (HxV) | 597.6 x 336.2 mm |
| Height | 38.65 cm |
| Control panel | Menu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Cables included | AC, DisplayPort, HDMI, USB |
| RMS rated power | 6 W |
| Active display area (W x H) | 597.6 x 336.2 mm |
| USB Touch port | Yes |
| Pallet net height | 110.7 cm |
| Pallet net length | 200.5 cm |
| Pallet net width | 74.7 cm |
| Products per pallet | 36 pc(s) |
| Quick start guide | Yes |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
| DVI port | Yes |
| HDMI | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Energy consumption (SDR) per 1000 hours | 24 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| European Product Registry for Energy Labelling (EPREL) code | 426849 |
| Power consumption (off) | 0.3 W |
| Socket connector type | C13 |
| Power supply type | Internal |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 25 W |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Sustainability certificates | ErP |
| Wall mountable | Yes |
| International Protection (IP) code | IP1X |
| Bezel width | 2.4 cm |
| Bezel width (bottom) | 2.4 cm |
| Bezel width (side) | 2.45 cm |
| Bezel width (top) | 2.4 cm |
| Height (with stand) | 38.65 cm |
| Height (without stand) | 38.65 cm |
| Depth (with stand) | 5.2 cm |
| Depth (without stand) | 5.2 cm |
| Weight (with stand) | 8300 g |
| Weight (without stand) | 8300 g |
| Weight | 8300 g |
| Width (with stand) | 64.85 cm |
| Width (without stand) | 64.85 cm |
| Width | 64.85 cm |
| Stock | 5 |
