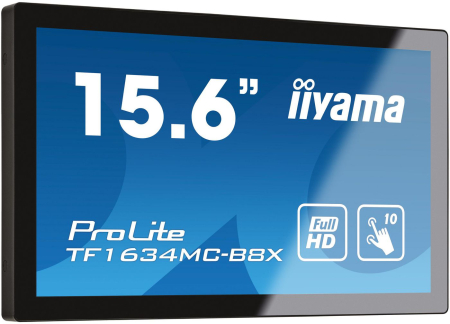

  3. Next iiyama 15.6", 16:9, 1920x1080, IPS, VGA, HDMI, DP, IP65, DC 12V, 381x230.5x46 mmiiyama 15.6", 16:9, 1920x1080, IPS, VGA, HDMI, DP, IP65, DC 12V, 381x230.5x46 mm
Rating: 5
100 % of 100
1  Review Add Your Review

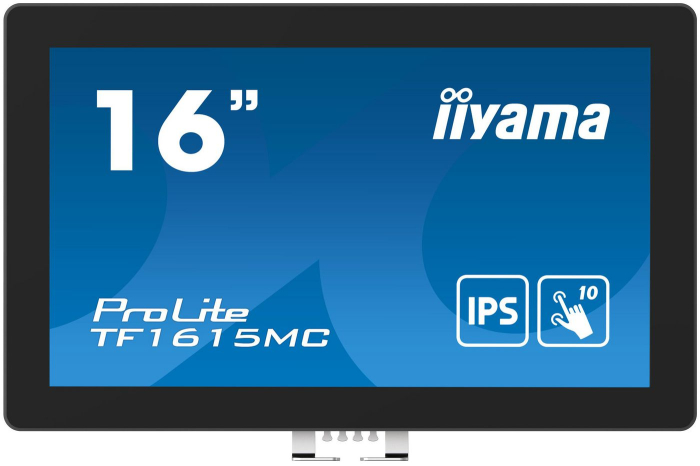

iiyama 15,6" 16:9 PCAP 10P Touch Bezel Free / Open Frame

£527.00 + VAT

iiyama ProLite TF1615MC-B1 15.6′′ Full HD Open Frame Touchscreen Monitor

Professional 15.6′′ Full HD 10-point touchscreen designed for kiosks, POS systems, interactive displays and custom commercial installations.

  • 15.6′′ Full HD IPS Display
  • 10-Point PCAP Multi-Touch
  • IP65-Rated Front Protection
  • Touch-Through-Glass up to 6mm
  • Anti-Fingerprint Coating
  • HDMI + DisplayPort + VGA
  • Landscape, Portrait & Face-Up Installation
  • 3-Year Warranty
In stock
SKU
W128185697
Add to Wish ListAdd to Compare
Sku: W128185697
Categories:  Monitors , Desktop Monitors , Shop All ,
Delivery & Return

Get Funding at 0% Interest with EPOS Direct →

Order within
Ordered Order confirmed
Shipped On the way to you
Delivered Arriving at your door

Secure Payments Accepted

Amex payment
Master Card
visa card payments
apple pay
google pay

Free UK Delivery

Secure Checkout

UK Support

Share it:

View full details

15,6" 16:9 PCAP 10P Touch Bezel Free / Open Frame

15,6" PCAP Bezel Free 10P Touch, 1920x1080, DisplayPort, HDMI, VGA, 405cd/m² (with touch), USB Interface, Through Glass (Gloves) mode, External Power Adapter, MultiTouch only with supported OS, Open frame model with seal, IP65 front

More Information
SKU W128185697
Brand iiyama
Model TF1615MC-B1
Warranty 3 Year(s)
Contrast ratio (typical) 1000:1
Display brightness 405 cd/m²
Display brightness (peak) 450 cd/m²
Display brightness (typical) 450 cd/m²
Display diagonal 15.6 "
Display diagonal (metric) 39.5 cm
Display resolution 1920 x 1080 pixels
HD type Full HD
Aspect ratio 16:9
Native aspect ratio 16:9
Horizontal scan range 31.5 - 67.5 kHz
Native refresh rate 16:9
Number of simultaneous touchpoints 10
Panel type IPS
Response time 25 ms
Pixel pitch 0.17925 x 0.17925 mm
Screen shape Flat
Surface hardness 7H
Touchscreen technology Projected capacitive system
Touchscreen Yes
Packaging content AC adapter, external control pad
Touch method stylus, finger, glove (latex)
Viewable size, horizontal 34.52 cm
Viewable size, vertical 19.46 cm
Viewing angle, vertical 178 °
Viewing angle, horizontal 178 °
Front bezel colour Black
Market positioning Business
Glass thickness 3.3 mm
Product colour Black
On Screen Display (OSD) Yes
On Screen Display (OSD) languages English, French, German, Italian, Japanese, Spanish, Traditional Chinese
Panel mounting interface 100 x 100 mm
VESA mounting Yes
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Brightness 405 cd/m²
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Depth 4.2 cm
Height 24.6 cm
Mean time between failures (MTBF) 50000 h
Control panel menu,scroll up/ brightness, scroll down/ contrast, select, power
Certification CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Cables included AC, DisplayPort, HDMI, USB
Power adapter included Yes
Active display area (W x H) 345.2 x 194.6 mm
Ethernet LAN Yes
USB Touch port Yes
VGA (D-Sub) ports quantity 1
Built-in USB hub Yes
Ethernet LAN (RJ-45) ports 1
AC adapter included Yes
Quick start guide Yes
HDMI Yes
HDCP Yes
DisplayPorts quantity 1
Headphone out Yes
AC adapter output voltage 12 V
Energy consumption (SDR) per 1000 hours 11 kWh
Energy efficiency class (HDR) Not available
Energy efficiency scale A to G
Energy efficiency class (SDR) E
European Product Registry for Energy Labelling (EPREL) code 1355204
Power consumption (off) 0.3 W
Socket connector type C13
Power supply type External
Power consumption (standby) 1.5 W
Power consumption (typical) 18 W
Compliance certificates CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Sustainability certificates ErP
International Protection (IP) code IP65
Height (with stand) 24.6 cm
Height (without stand) 24.6 cm
Depth (with stand) 4.2 cm
Depth (without stand) 4.2 cm
Weight (with stand) 2500 g
Weight (without stand) 2500 g
Weight 2500 g
Width (with stand) 39.85 cm
Width (without stand) 39.85 cm
Width 39.85 cm
Package type Box
Stock 5
